Modular Pit Ladder - Adjustable to any height

$ 125.00 Back
Ladder Width
Ladder Length
Quantity:

The Vator Accessories, Inc. Modular Pit ladder is the most versatile pit ladder on the market. Each ladder is equipped with a fully adjustable bottom section that allows you to control the height of each leg seperately up to one full foot. This means if there is a variance in the elevation ofthe pit floor, each leg of the Vator modular Pit ladder can be adjusted in height in order to have the most secure installation possible. User friendly, assembles in minutes. Meets A17.1 code.

* Side ladder stiles are manufactured using structural steel bar channels

* Rungs are 5/8" dia. with a non-slip surface, punched and plug welded on 12" centers

* Standard widths available: 16", 12", 9". Custom widths also available, please call for pricing

* Modular Pit Ladders are available from 7 feet through 17 feet (for 3 foot through 13 foot pits) and each ladder is fully adjustable up to one foot on each leg. For example, one leg can be adjusted to 8'0" and the other to 8'1" to compensate for an elevation in the floor.

* Top section includes one rung (Grab bar) at the top for added safety when entering or exiting pit area

* Each Modular Pit Ladder includes a Top Grab Bar section along with other sections ranging from 1 foot to 4 feet depending on the length of the ladder

* Floor mounting brackets are fully adjustable and allow you to control the height of each leg separately up to one full foot!

* Reversible wall mounting brackets allow pit ladder to be installed with either 5" or 7" of wall clearance, meeting A17.1 code requirements. PLM-34 and PLM-45 include four (4) wall mounting brackets. PLM-56, PLM-67, and PLM-78 include six (6) wall mounting brackets. PLM-89, PLM-910, PLM-1011, and PLM-1112 include eight (8) wall mounting brackets. PLM-1213 includes ten (10) wall brackets.

* Hardware to secure ladder to wall and floor areas using provided mounting brackets is not included

* Ships disassembled in max. 48" sections for substantial freight savings (see picture below). All required splice plates, nuts, and bolts are included for quick and easy assembly.

* Upon request ladder can ship fully assembled via truck.

PLM-45 is pictured in diagram. PLM-34 is pictured below assembled and ready to ship

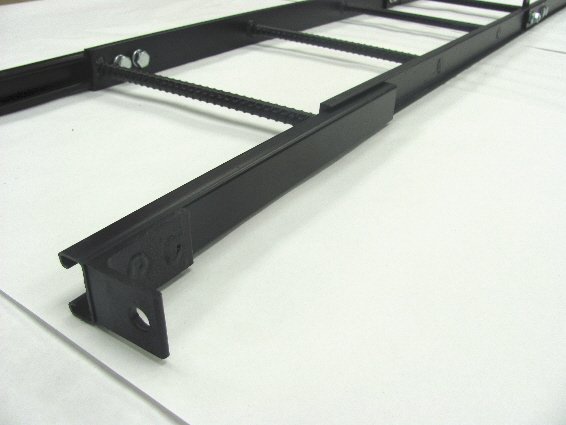

Adjustable Floor Bracket

Reversible Wall Bracket

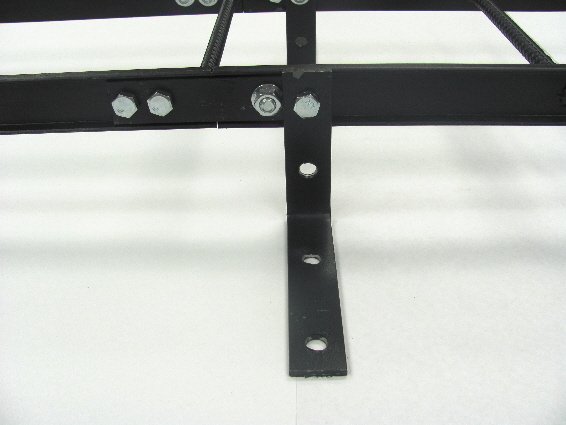

Reversible Wall Bracket and Splice Plate

Also Great for Loading Docks!
