PLF - SPACESAVER FOLD-UP LADDER

Image 0 of PLF - SPACESAVER FOLD-UP LADDERImage 1 of PLF - SPACESAVER FOLD-UP LADDERImage 2 of PLF - SPACESAVER FOLD-UP LADDER

PLF - SPACESAVER FOLD-UP LADDER

$750.00

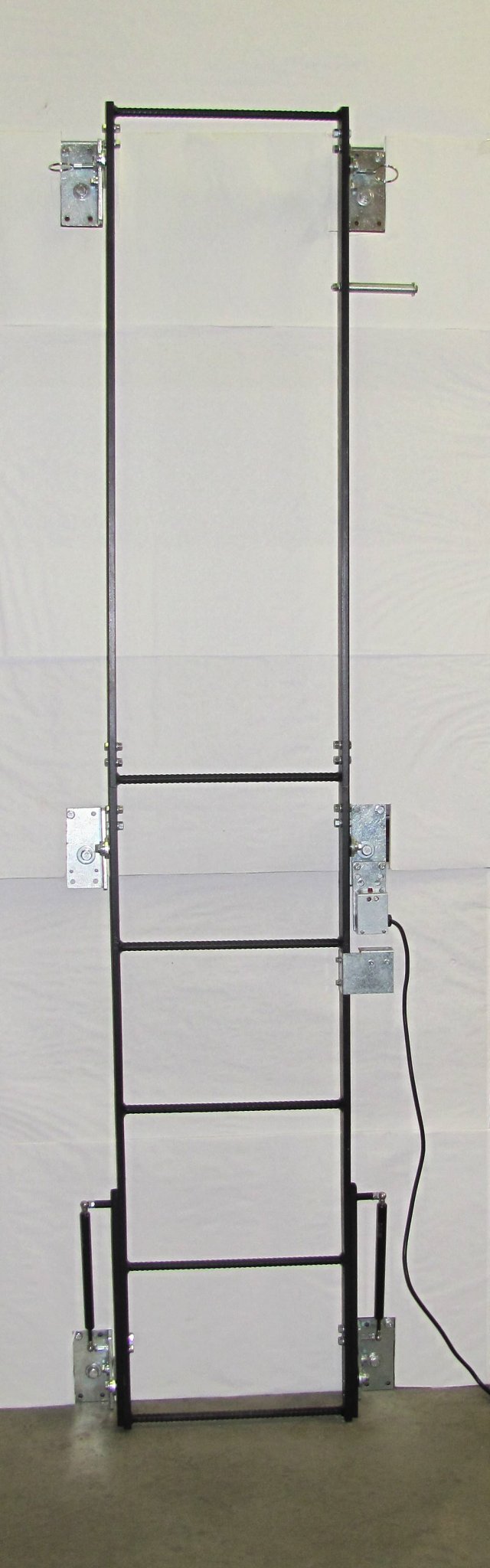

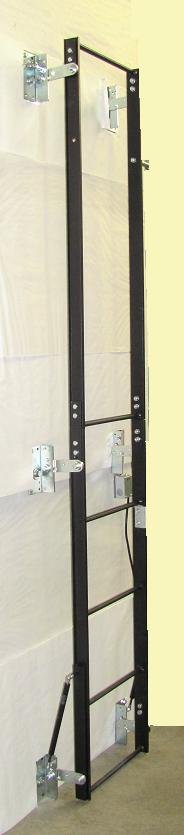

The Spacesaver Fold-up Ladder is designed to be used in elevator pits with very little clearance. Deployed, the ladder stands either 5 or 7 from the wall. In its folded up position, the ladder only extends 2.5 from the wall. Great for MRL applications.

CUSTOM LENGTHS AVAILABLE, CALL FOR QUOTE!

Have a question?

LADDER LENGTH
LADDER WIDTH:
TYPE OF TOP SECTION:
ON WHICH SIDE WOULD YOU LIKE THE SWITCH BOX?
HOW FAR FROM THE WALL WHEN DOWN?

The Spacesaver Fold-up Ladder is designed to be used in elevator pits with very little clearance. Deployed, the ladder stands either 5 or 7 from the wall. In its folded up position, the ladder only extends 2.5 from the wall. Great for MRL applications.

Features:

* Each leg is adjustable up to one foot separately, as on the popular PLM Modular Pit Ladders

* Available with 5 or 7 Wall Brackets

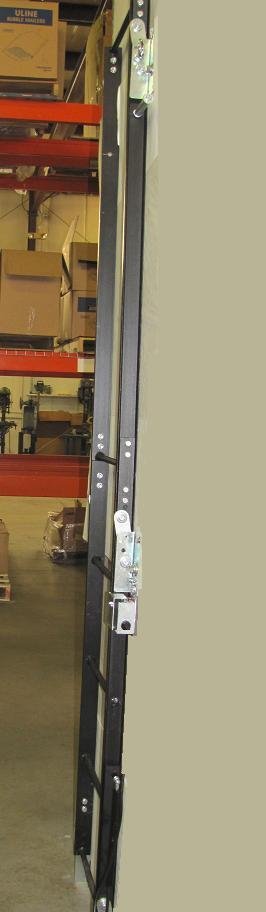

* Stands only 2.5 from wall in folded up position

* DUAL 20 lb hydraulic cylinders allow you to lift the ladder into folded up position with little effort

* Dual locking pins ensure the ladder is secure when in closed position

* Handle aids in deploying and closing the ladder

* NEON INDICATOR LIGHT lets you know when the ladder is properly closed and the contact switch has made the connection (When placing an order, specify whether you want the switch on the right or left when facing the ladder)

* All structural steel and welded

When placing an order, specify whether you want the switch on the right or left when facing the ladder

A17.1 CODE COMPLIANT!

CUSTOM LENGTHS AVAILABLE, CALL FOR QUOTE!

Ships in approximately 1 week.
